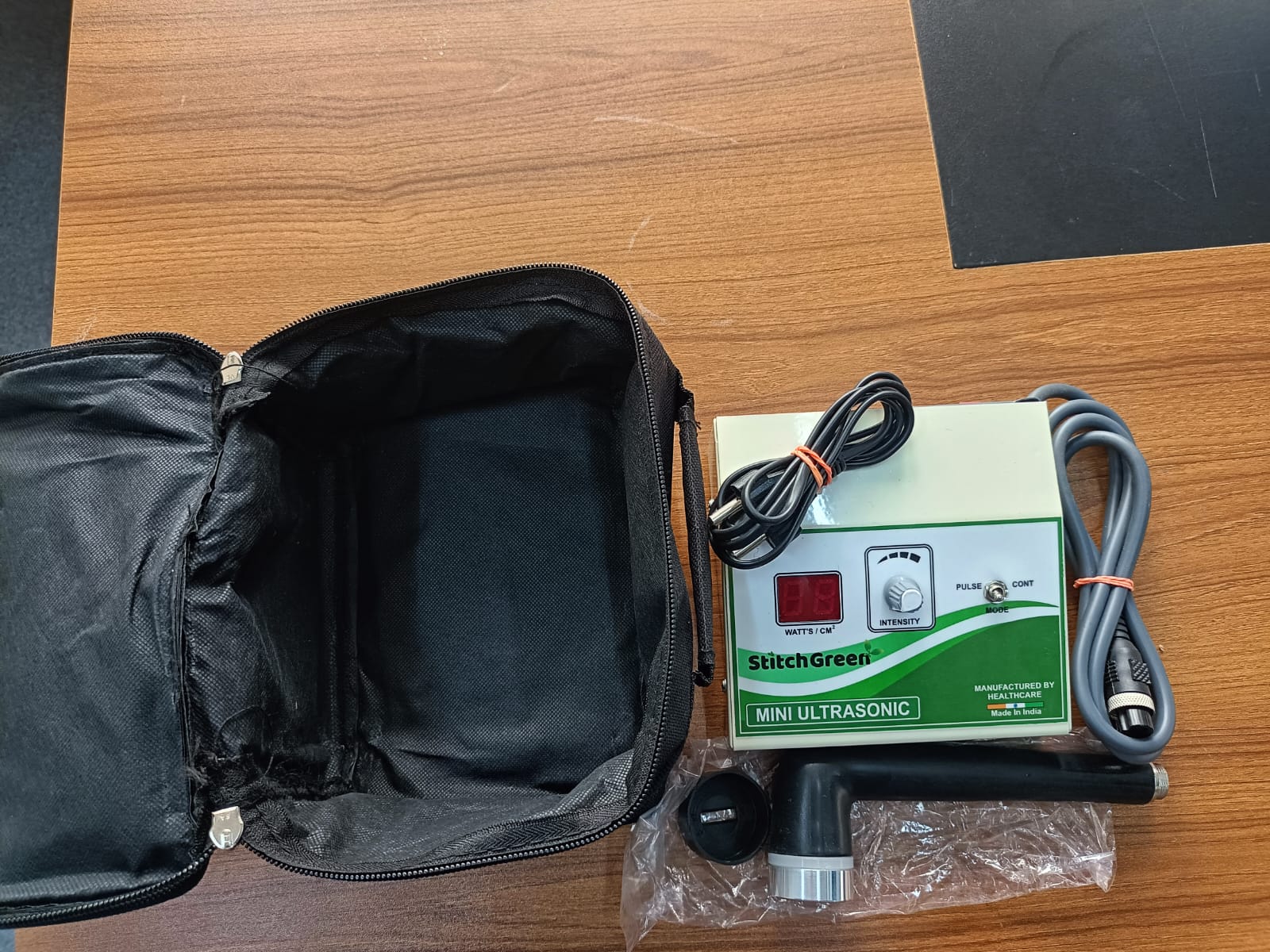

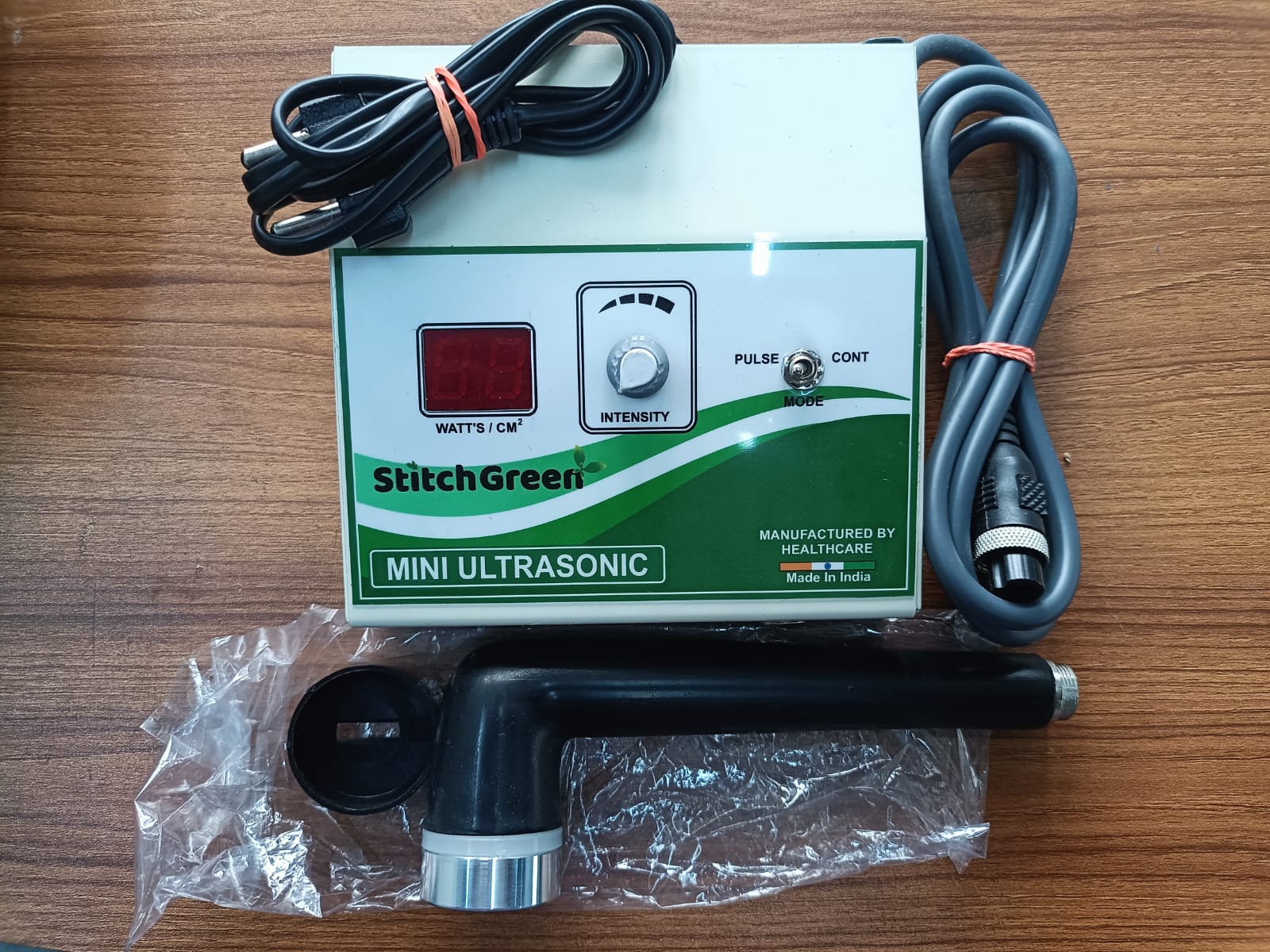

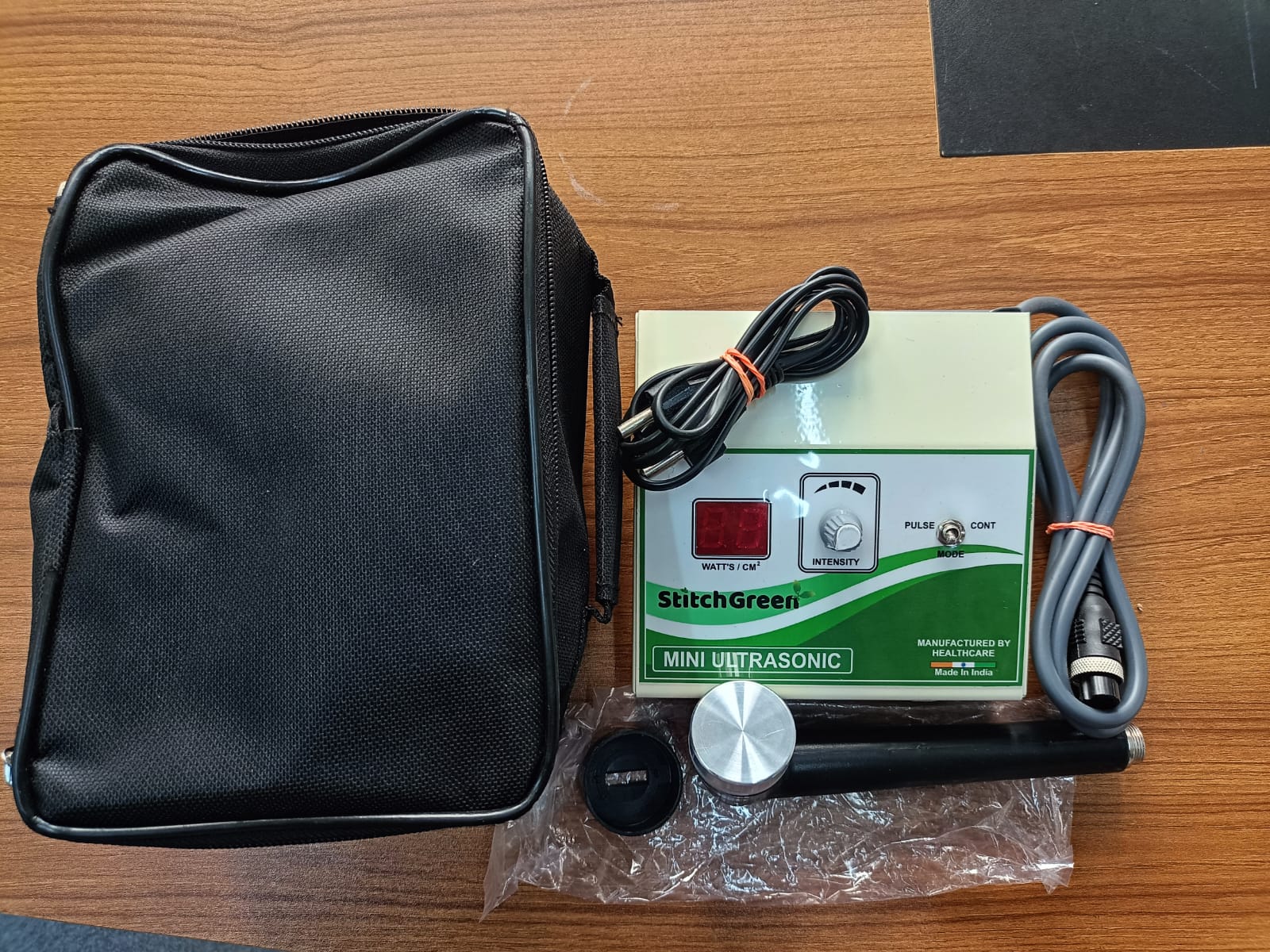

StitchGreen Mini Ultrasonic Physiotherapy Machine

Ultrasound Therapy Unit – Made in India

Product Description

The StitchGreen Mini Ultrasonic Physiotherapy Machine is a compact and efficient electrotherapy device used for therapeutic ultrasound treatment in physiotherapy clinics, hospitals, and rehabilitation centers. Ultrasound therapy uses high-frequency sound waves to penetrate deep into soft tissues, helping reduce pain, inflammation, and muscle spasms while accelerating tissue healing.

This mini ultrasonic unit is designed for portable clinical use, providing stable ultrasonic output for effective physiotherapy treatment. The device improves blood circulation, tissue repair, and muscle relaxation, making it suitable for treating a wide range of musculoskeletal conditions.

The StitchGreen Mini Ultrasonic Machine is lightweight, easy to operate, and ideal for both clinical and home physiotherapy treatments.

Technical Specifications

General Information

• Product Name: StitchGreen Mini Ultrasonic Physiotherapy Machine

• Therapy Type: Ultrasound Therapy

• Country of Origin: India

• Application: Physiotherapy & Rehabilitation

Electrical Specifications

• Input Voltage: 220–240 V AC

• Frequency: 50/60 Hz

• Power Consumption: Approx. 40 – 60 W

Ultrasound Specifications

• Ultrasound Frequency: 1 MHz

• Output Power: Up to 3 W/cm²

• Output Mode: Continuous & Pulsed

• Duty Cycle: 20%, 50%, 100%

• Treatment Timer: 0 – 15 minutes adjustable

Transducer Specifications

• Transducer Type: Ergonomic ultrasound probe

• Effective Radiating Area (ERA): Approx. 4–5 cm²

• Head Material: Stainless steel / Aluminum alloy

Physical Specifications

• Machine Type: Mini tabletop physiotherapy unit

• Body Material: ABS plastic / metal cabinet

• Weight: Approx. 1.5 – 2 kg

• Dimensions: Approx. 25 × 20 × 10 cm

• Operating Temperature: 10°C – 40°C

Key Features

• Compact and portable ultrasound therapy unit

• Continuous and pulsed ultrasound modes

• Adjustable treatment intensity

• Digital / analog timer control

• Stable ultrasonic output for effective therapy

• Durable and shock-resistant cabinet

• Easy-to-use control panel

Standard Accessories

• Ultrasound therapy probe (1 MHz)

• Ultrasound therapy gel bottle

• Power cord

• Probe holder

• User manual

Applications

• Muscle pain and stiffness

• Tendonitis and bursitis

• Arthritis and joint pain

• Sports injuries

• Soft tissue injuries

• Ligament sprains

• Post-operative rehabilitation
