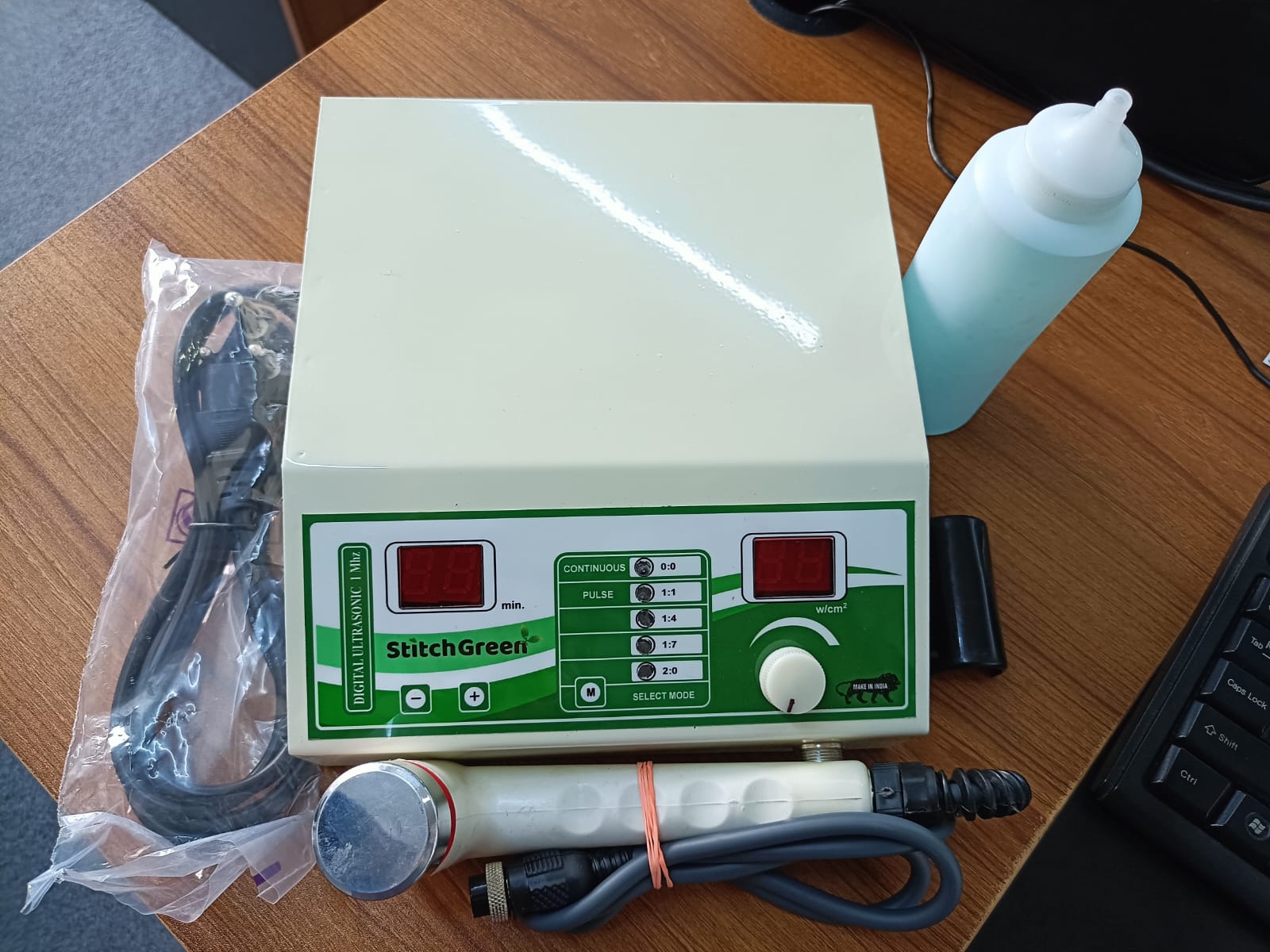

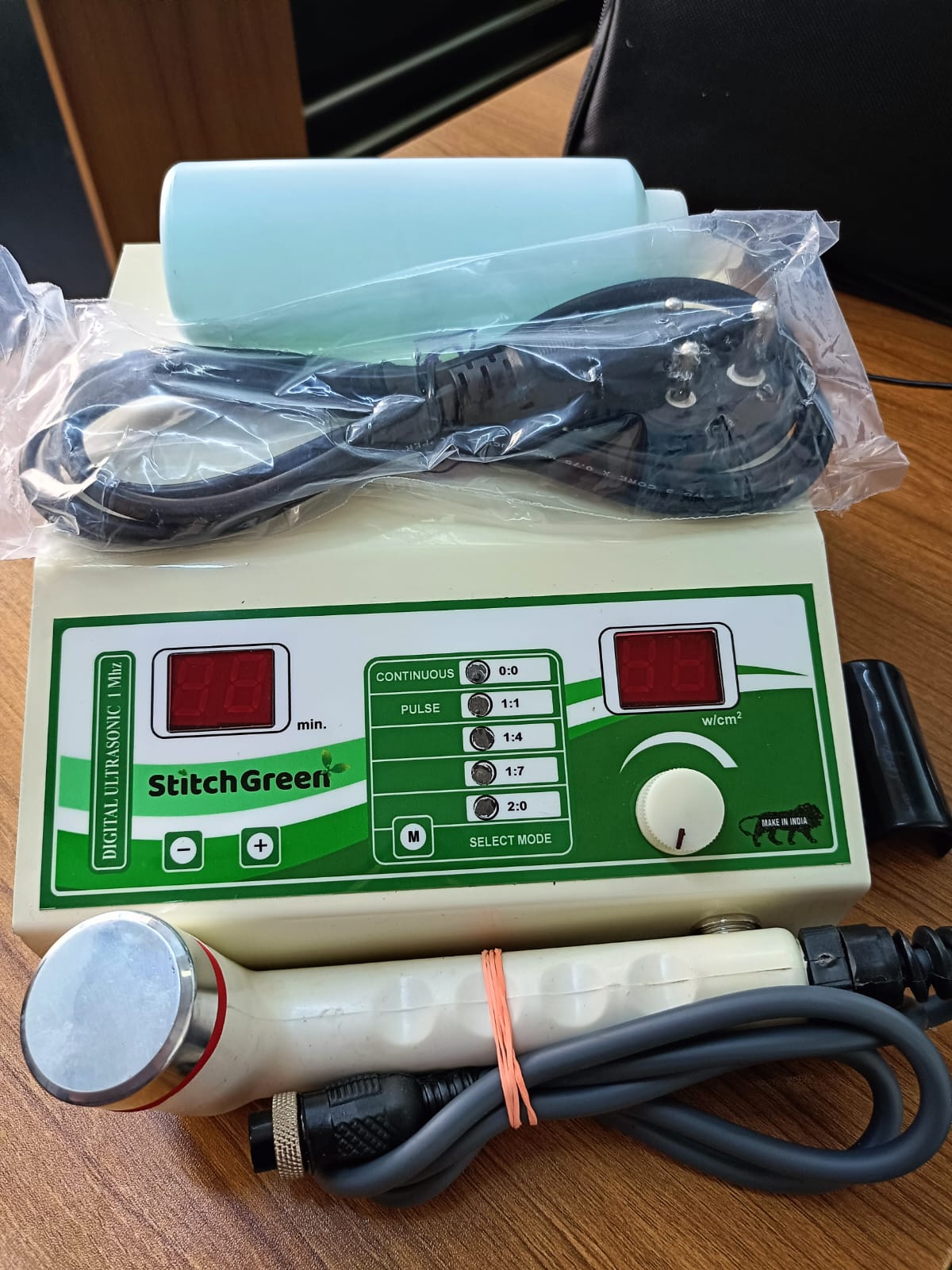

StitchGreen Digital Ultrasonic Physiotherapy Machine

Ultrasound Therapy Unit – Made in India

Product Description

The StitchGreen Digital Ultrasonic Physiotherapy Machine is an advanced electrotherapy device designed for therapeutic ultrasound treatment in physiotherapy clinics, hospitals, and rehabilitation centers. The machine generates high-frequency ultrasonic waves that penetrate deep into body tissues to stimulate healing, reduce inflammation, relieve pain, and improve blood circulation.

This digital ultrasound therapy unit features precise intensity control, digital timer, and continuous or pulsed therapy modes, allowing physiotherapists to deliver controlled and effective treatment. The device is widely used for managing musculoskeletal injuries, ligament sprains, joint stiffness, tendonitis, and sports injuries.

With a compact design, durable construction, and stable ultrasonic output, the StitchGreen Digital Ultrasonic Machine ensures safe and reliable physiotherapy treatment for both clinical and rehabilitation purposes.

Technical Specifications

General Information

• Product Name: StitchGreen Digital Ultrasonic Physiotherapy Machine

• Therapy Type: Ultrasound Therapy

• Country of Origin: India

• Application: Physiotherapy & Rehabilitation

Electrical Specifications

• Input Voltage: 220–240 V AC

• Frequency: 50/60 Hz

• Power Consumption: Approx. 60 – 80 W

Ultrasound Specifications

• Ultrasound Frequency: 1 MHz

• Output Power: 0 – 3 W/cm² adjustable

• Output Mode: Continuous & Pulsed

• Pulse Duty Cycle: 20%, 50%, 100%

• Treatment Timer: 0 – 30 minutes digital timer

Transducer Specifications

• Transducer Type: High-efficiency ultrasound probe

• Effective Radiating Area (ERA): Approx. 5 cm²

• Head Material: Stainless steel / Aluminum alloy

• Probe Frequency Accuracy: ±5%

Display & Controls

• Digital display (LED/LCD)

• Soft-touch control panel

• Adjustable intensity control

• Digital treatment timer

Physical Specifications

• Machine Type: Tabletop physiotherapy unit

• Body Material: ABS plastic cabinet

• Weight: Approx. 2 – 3 kg

• Dimensions: Approx. 28 × 24 × 10 cm

• Operating Temperature: 10°C – 40°C

Key Features

• Advanced digital ultrasound therapy system

• Continuous and pulsed therapy modes

• Precise digital timer and intensity control

• Stable ultrasonic output for deep tissue therapy

• Compact and user-friendly design

• Durable and shock-resistant cabinet

• Suitable for hospitals, physiotherapy clinics, and rehabilitation centers

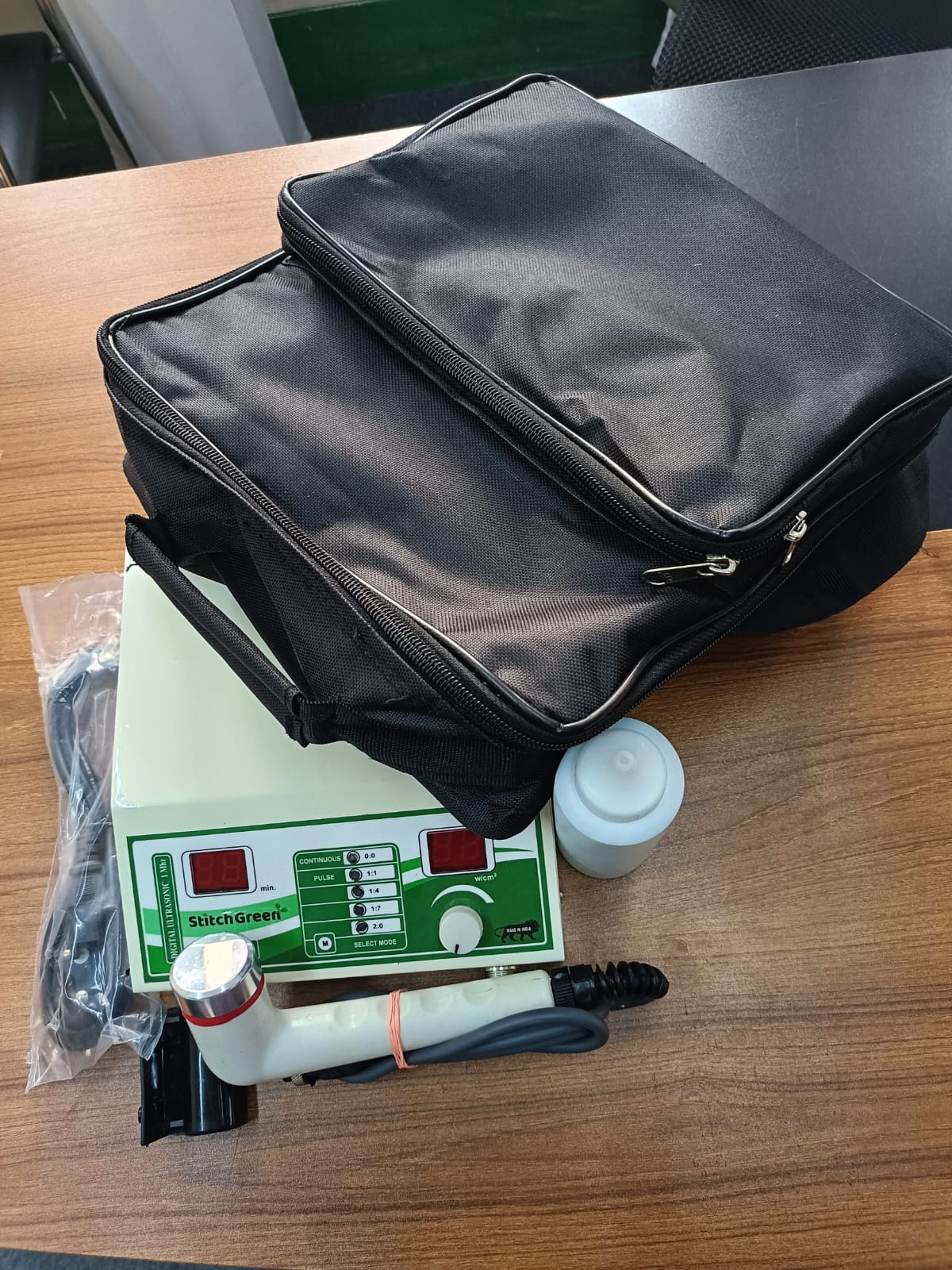

Standard Accessories

• Ultrasound therapy probe (1 MHz)

• Ultrasound gel bottle

• Probe holder

• Power cord

• User manual

Applications

• Muscle pain and stiffness

• Tendonitis and bursitis

• Arthritis and joint inflammation

• Ligament sprains and soft tissue injuries

• Sports injuries

• Frozen shoulder treatment

• Post-operative rehabilitation
