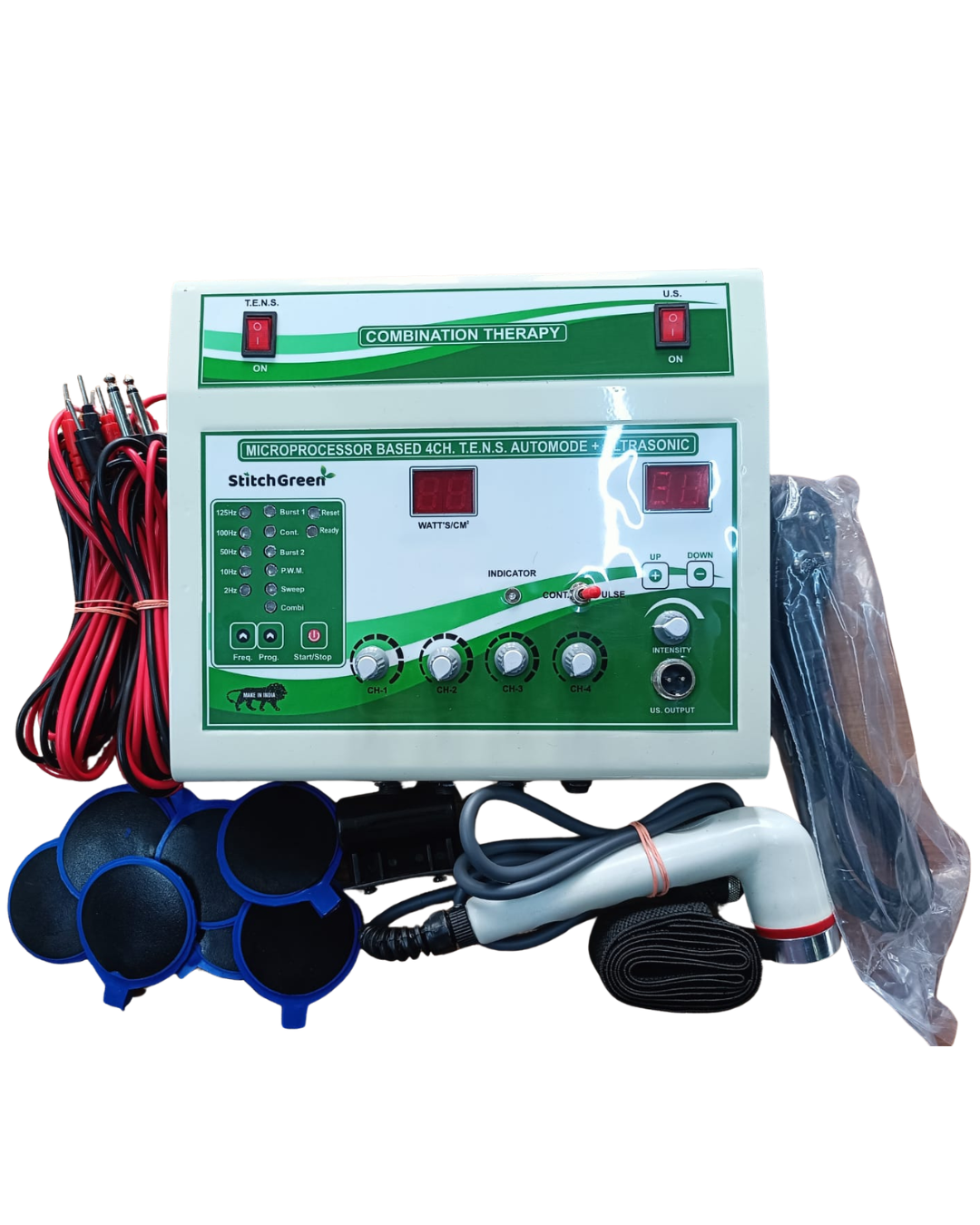

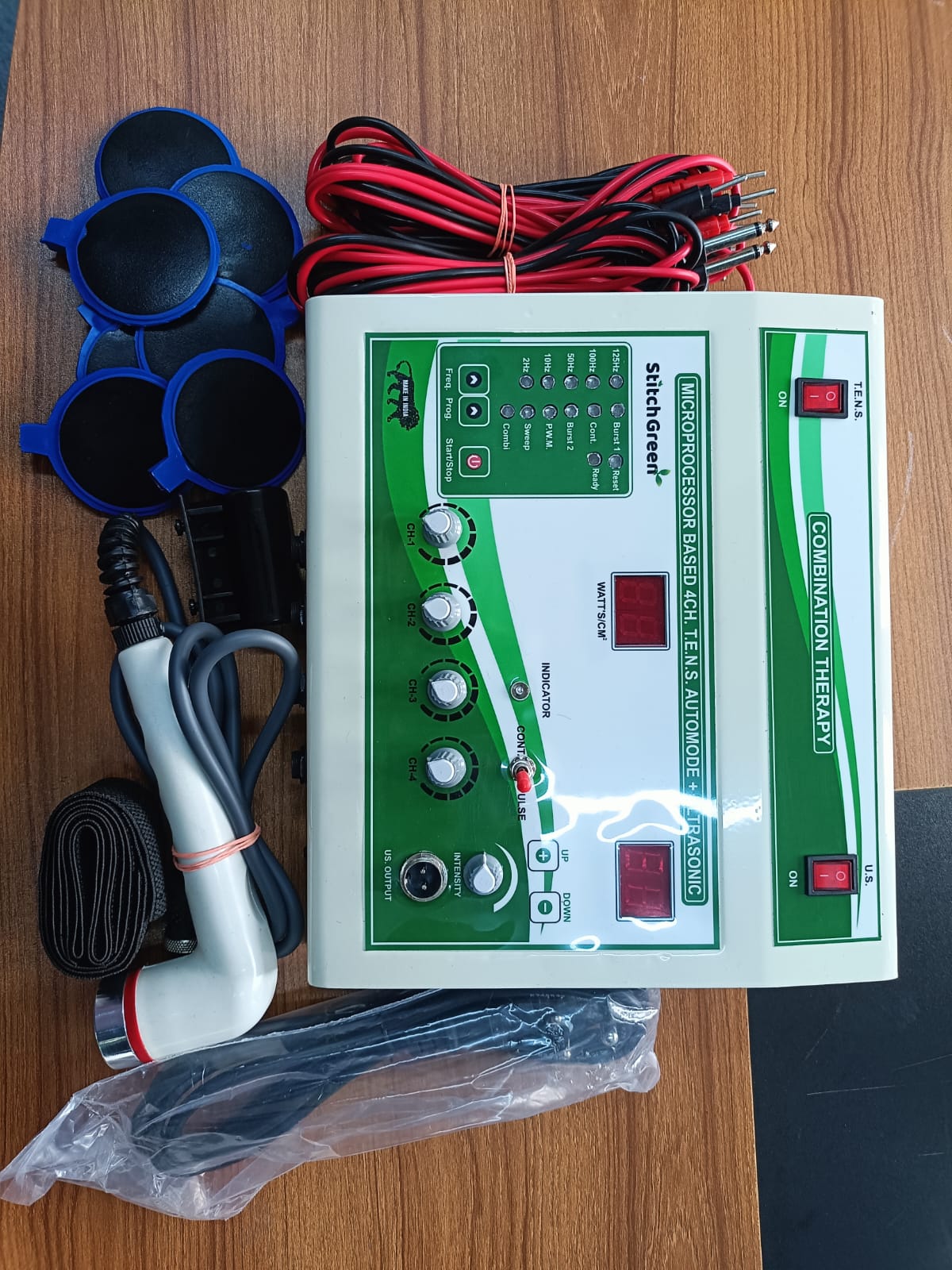

StitchGreen 4 Channel T.E.N.S + Ultrasonic Combo Physiotherapy Machine
StitchGreen 4 Channel T.E.N.S + Ultrasonic Combo Physiotherapy Machine
  • Load image into Gallery viewer, StitchGreen 4 Channel T.E.N.S + Ultrasonic Combo Physiotherapy Machine
  • Load image into Gallery viewer, StitchGreen 4 Channel T.E.N.S + Ultrasonic Combo Physiotherapy Machine

StitchGreen 4 Channel T.E.N.S + Ultrasonic Combo Physiotherapy Machine

Tk 14,500.00
Tk 14,500.00
Sold out

StitchGreen 4 Channel T.E.N.S + Ultrasonic Combo Physiotherapy Machine

Electrotherapy & Ultrasound Therapy Unit – Made in India

Product Description

The StitchGreen 4 Channel T.E.N.S + Ultrasonic Combo Physiotherapy Machine is a multi-function electrotherapy device designed for professional physiotherapy treatment. This advanced unit combines TENS (Transcutaneous Electrical Nerve Stimulation) therapy and Ultrasound therapy in a single machine, allowing physiotherapists to treat both nerve pain and soft tissue injuries effectively.

The 4-channel TENS system provides electrical nerve stimulation through electrodes placed on the skin to block pain signals and promote natural pain relief. The ultrasonic therapy module generates high-frequency sound waves that penetrate deep tissues to reduce inflammation, stimulate blood circulation, and accelerate healing.

This combination therapy unit is widely used in hospitals, physiotherapy clinics, sports rehabilitation centers, and orthopedic treatment facilities for managing musculoskeletal disorders and chronic pain conditions.

Technical Specifications

General Information

  • Product Name: StitchGreen 4 Channel T.E.N.S + Ultrasonic Combo Physiotherapy Machine

  • Therapy Type: Electrotherapy + Ultrasound Therapy

  • Country of Origin: India

  • Application: Physiotherapy & Rehabilitation

Electrical Specifications

  • Input Voltage: 220–240 V AC

  • Frequency: 50/60 Hz

  • Power Consumption: Approx. 80 – 100 W

TENS Therapy Specifications

  • Output Channels: 4 Channels

  • Output Current: 0 – 100 mA adjustable

  • Frequency Range: 1 – 150 Hz

  • Pulse Width: 50 – 300 microseconds

  • Waveform: Biphasic Rectangular Pulse

  • Therapy Modes: Continuous, Burst, Sweep

  • Independent Intensity Control: Yes (for each channel)

Ultrasound Therapy Specifications

  • Ultrasound Frequency: 1 MHz

  • Output Power: 0 – 3 W/cm² adjustable

  • Output Modes: Continuous and Pulsed

  • Pulse Duty Cycle: 20%, 50%, 100%

  • Treatment Timer: 0 – 30 minutes

Transducer Specifications

  • Transducer Type: High-efficiency ultrasonic probe

  • Effective Radiating Area: Approx. 5 cm²

  • Probe Head Material: Stainless steel / Aluminum alloy

Display & Control

  • Digital display (LED/LCD)

  • Soft touch control panel

  • Independent intensity control knobs

  • Digital therapy timer

Physical Specifications

  • Machine Type: Tabletop physiotherapy unit

  • Body Material: ABS plastic cabinet

  • Weight: Approx. 3 – 4 kg

  • Dimensions: Approx. 30 × 25 × 12 cm

  • Operating Temperature: 10°C – 40°C

Key Features

  • Dual therapy system (TENS + Ultrasonic)

  • Four independent TENS output channels

  • Continuous and pulsed ultrasound therapy

  • Adjustable therapy intensity and frequency

  • Compact and durable physiotherapy unit

  • Easy-to-operate digital control panel

  • Stable and safe electrical output

Standard Accessories

  • 8 TENS electrode pads

  • 4 patient lead wires

  • Ultrasound therapy probe (1 MHz)

  • Ultrasound gel bottle

  • Elastic electrode straps

  • Probe holder

  • Power cord

  • User manual

Applications

  • Chronic and acute pain relief

  • Back pain and cervical pain

  • Arthritis and joint inflammation

  • Sciatica and nerve pain

  • Muscle spasms and stiffness

  • Tendonitis and ligament injuries

  • Sports injury rehabilitation

  • Post-operative physiotherapy
